Pro HVAC Micron Vacuum Gauge, Digital AC Micron Gauge 0-75000 Microns
6 sold in last 24 hours
- 【High Precision for HVAC Excellence】Equipped with a professional Pirani vacuum sensor, digital vacuum gauge delivers rapid, accurate readings across an extensive range (0-75,000 microns ), with ±5% accuracy. Perfect for micro-leak detection and vacuum quality assessment in HVAC systems
- 【Durability and Versatility】Designed specifically for HVAC environments: 14 PSI overpressure protection, 1/4" SAE tapered connector (7/16-20 UNF), fully compatible with industry tools, and reliable performance across a temperature range of 32-122°F. Switchable between 4 units (Pa, mBar, mmHg, microns)
- 【Pro-grade calibration and Alerts】Ensures accuracy through professional dual calibration (full-scale and zero-point calibration). Features a large backlit LCD screen with a refresh rate of 0.5 seconds, enabling real-time monitoring in low-light environments. Triggers immediate audio and visual alerts when the set value is reached.
- 【Smart Temp Compensation 】Built-in algorithm to automatically correct for temperature changes, adjusting readings in real time to counteract heat-related sensor drift. This ensures reliable, consistent vacuum measurements even when ambient temperatures fluctuate—critical for precise HVAC system checks.

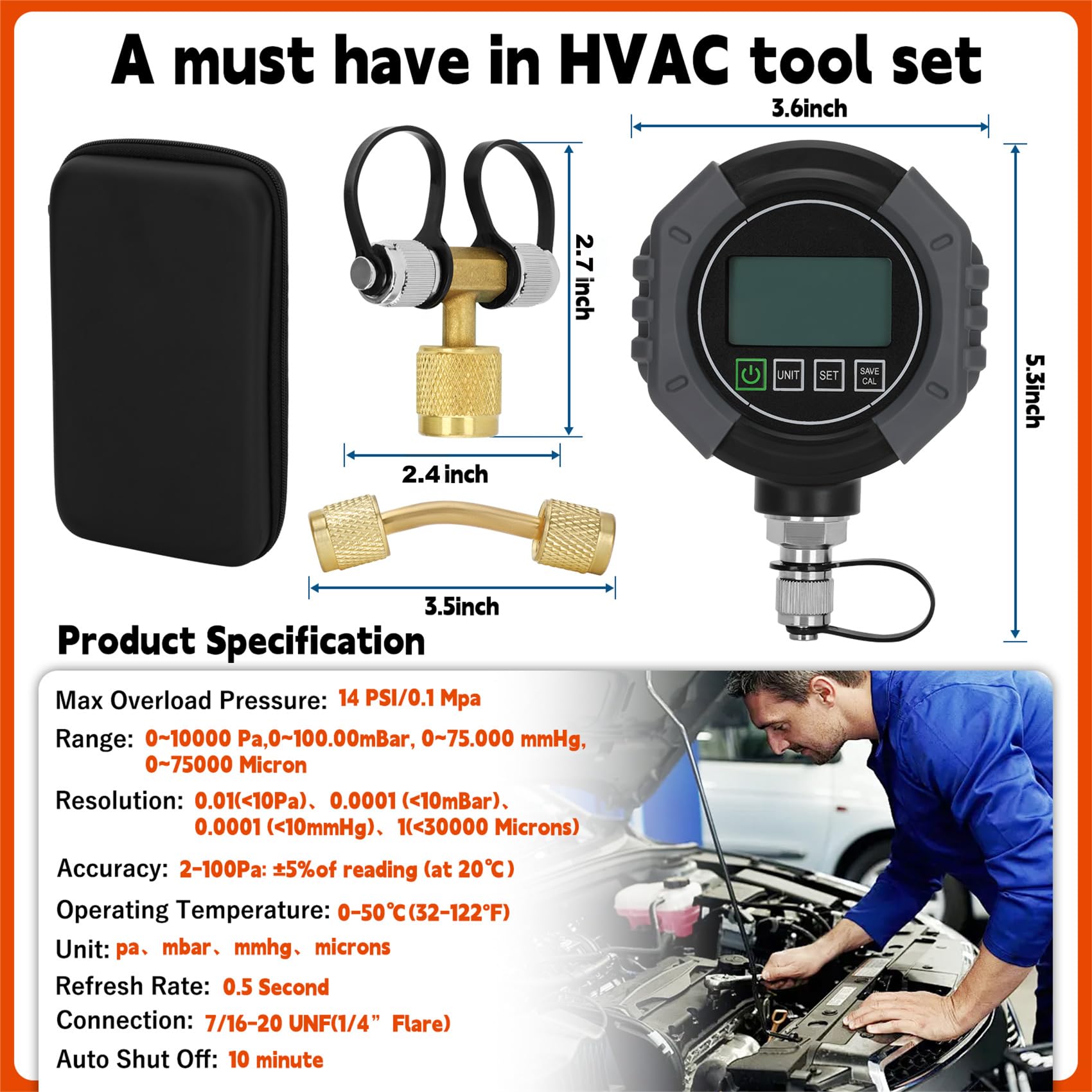

- 【Packing List】Digital vacuum gauge*1, Bend sensor connector*1, Tee connector*1, Storage bag*1, Instruction manual*1 and Battery *3
Tags |
Estimated shipping
Select a product to estimate shipping.Packing List
Digital vacuum gauge*1,
Bend sensor connector*1
Tee connector*1,
Storage bag*1
Instruction manual*1
Battery *3
Smart HVAC Digital Vacuum Gauge Instruction Manual
High precision standard
HAVC system
Dual calibration mode
Simple to clean
Easy to read
Unit selection
LCD HD Display

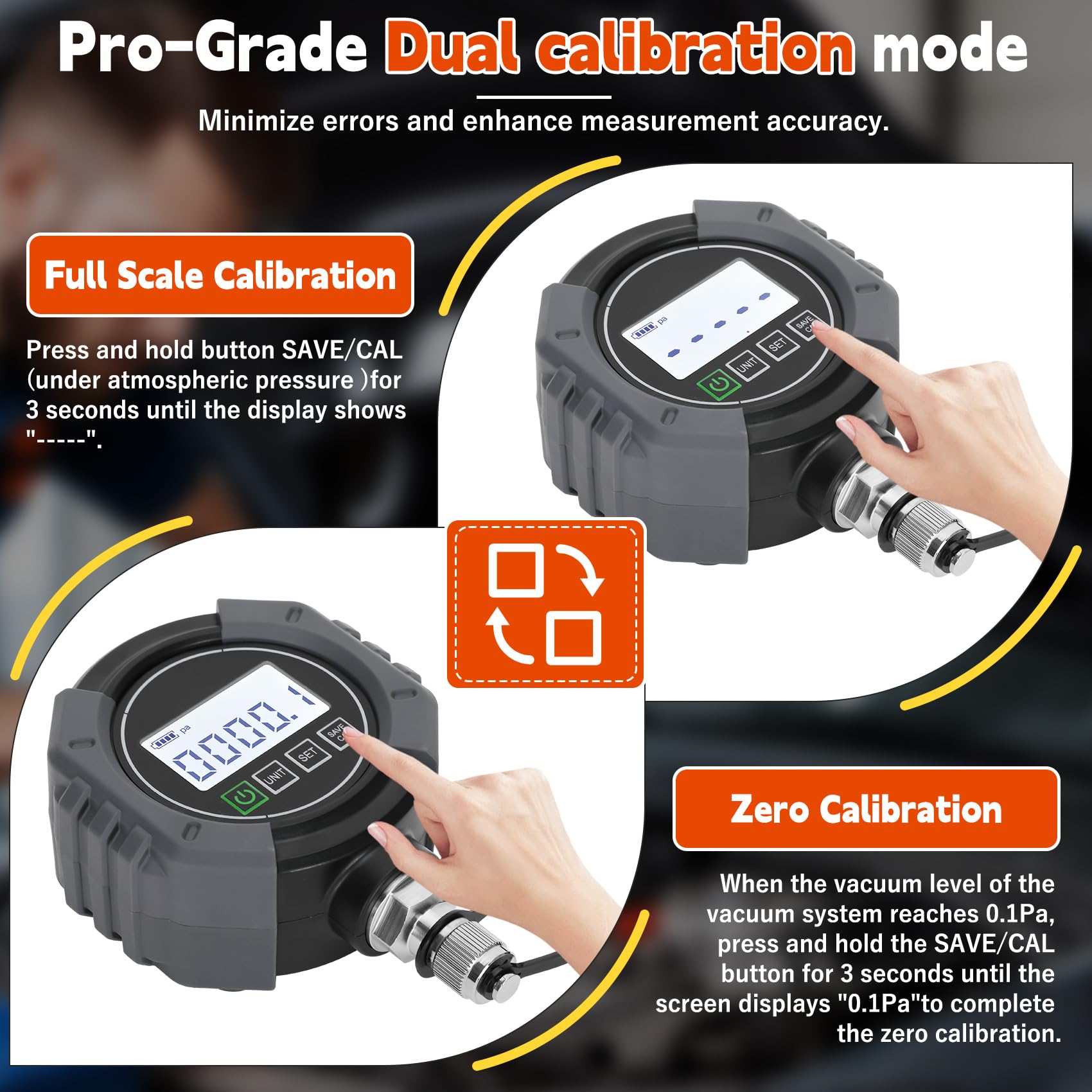

Pro-Grade Dual calibration mode
Minimize errors and enhance measurement accuracy.
Full Scale Calibration
Press and hold button SAVE/CAL(under atmospheric pressure )for 3 seconds until the display
shows "-----".
Zero Calibration
When the vacuum level of the vacuum system reaches 0.1Pa, press and hold the SAVE/CAL button for 3 seconds until the screen displays "0.1Pa"to complete the zero calibration.

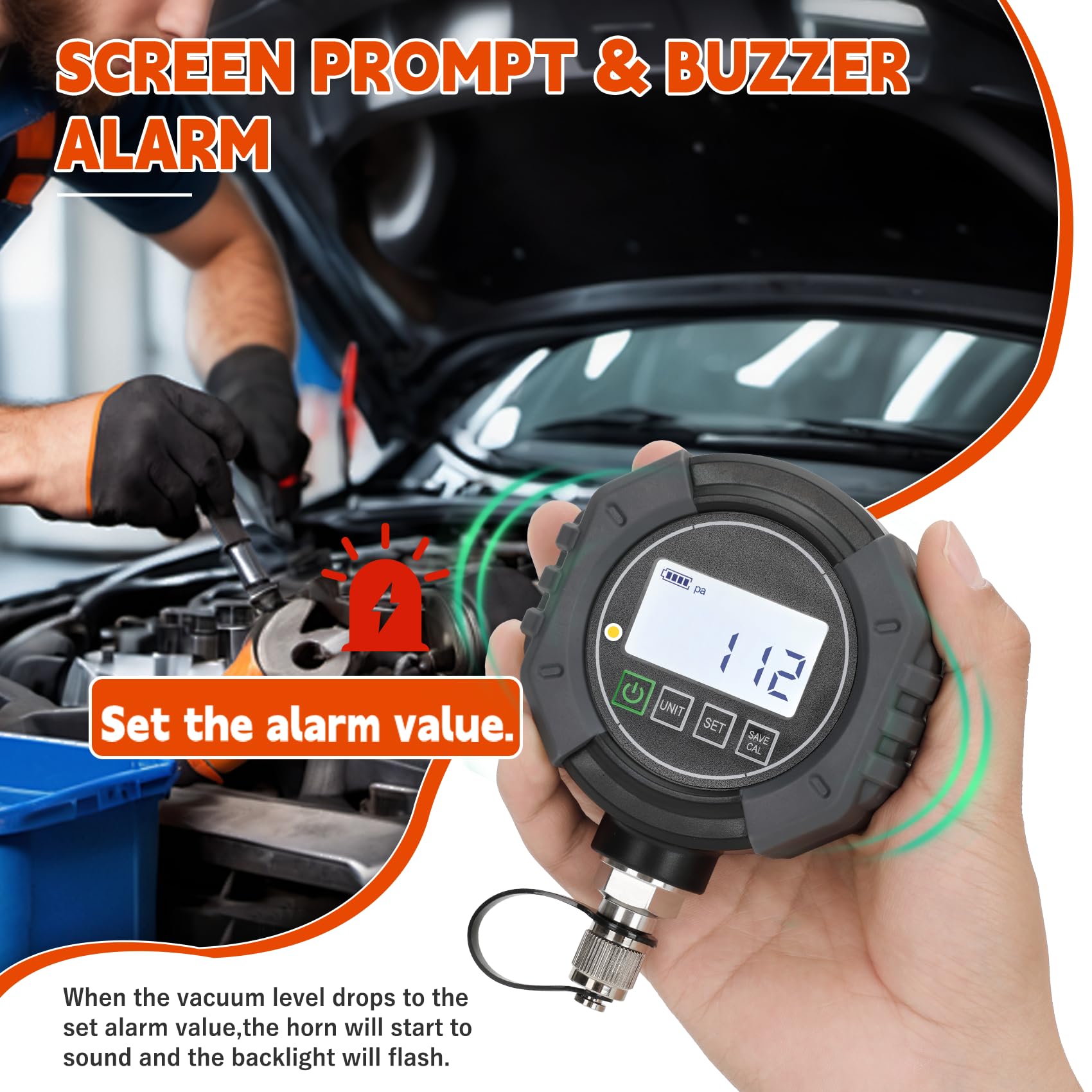

SCREEN PROMPT & BUZZER ALARM
When the vacuum level drops to the set alarm value,the horn will start to sound and the backlight will flash
WIDELY APPLICATIONS
Minisplit installation
Refrigerant systems
Air conditioning systems
HVAC systems
Automotive vacuum inspection
Reefer technician

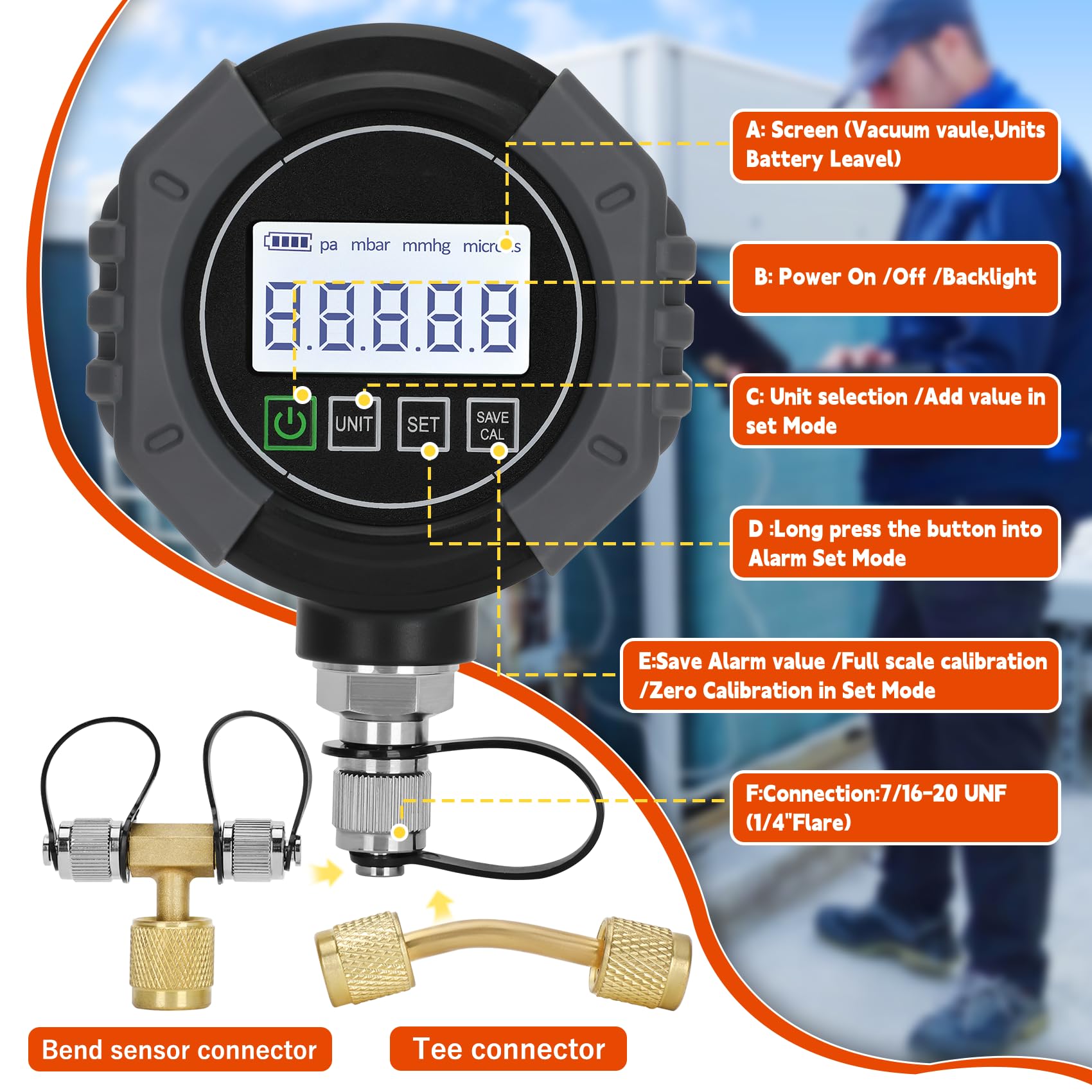

A: Screen (Vacuum vaule,Units Battery Leavel)
B: Power On /Off /Backlight
C: Unit selection /Add value in set Mode
D :Long press the button into Alarm Set Mode
E:Save Alarm value /Full scale calibration/Zero Calibration in Set Mode
F:Connection:7/16-20 UNF (1/4"Flare)
Bend sensor connector
Tee connector

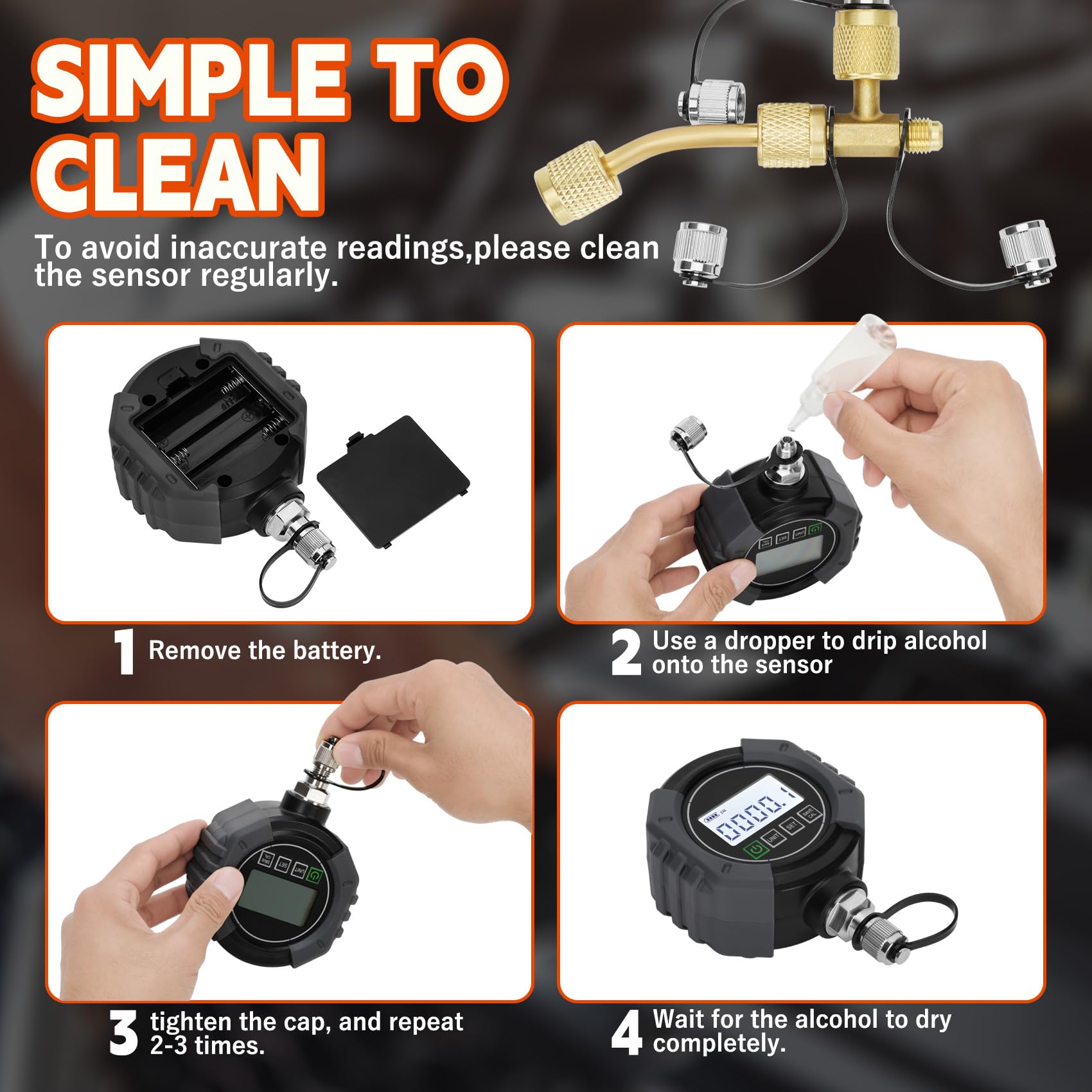

1. Remove the battery.
2. Use a dropper to drip alcohol onto the sensor
3. tighten the cap, and repeat 2-3 times.
4. Wait for the alcohol to dry completely.
Product details
| Main Specification | |
|---|---|
| Gyártó | starEEl |
| Egységszám | 1 Számolás |
| Márka | starEEl |
| Tételek száma | 1 |
| Összetevők | Digital Vacuum Gauge Brass Adapter |
| Product information | |
| Csomagok száma | 1 |
| Technical Details | |
| Anyagtípus | Fém or Réz |
| Részszám | 001 |
| Menetstílus | 1/4-20 Unc |
| Others | |
| Elem kiemelése | Vacuum Tester with Alarm or LCD Backlit Display or 7/16-20 UNF & 1/4" SAE Ports or Includes T-Connector and Extension Adapter |
| Terméktípus | Vacuum Gauges |
